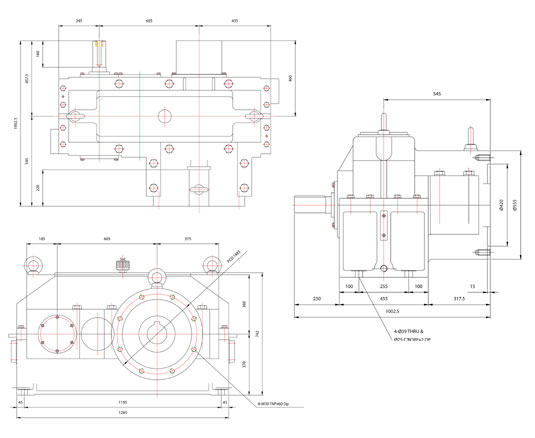

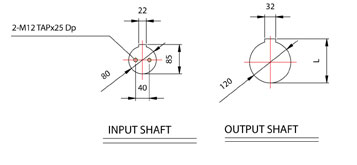

| GEAR
SPECIFICATION |
| DRIVEN
MOTOR |
187Kw
* 1500 RPM |
| OUTPUT
SHAFT SPEED |
100 RPM |
| REDUCTION
RATIO |
1 / 10.917 |
| LUBRICANT |
ISO VG
220. 65 LITER |
| WEIGHT |
1500
Kg |
|
NAME |
STEP |
1 STEP
GEAR |
2 STEP
GEAR |
| PART |
PINION |
GEAR |
PINION |
GEAR |
| MODULE |
5.5 |
8 |
| NO
DF TEETH |
19 |
66 |
21 |
66 |
| PRESSURE
ANGLE |
20 ˚
|
20 ˚ |
| HELIX
ANGLE |
(R) 15
˚ (L) |
(R) 10
˚ (L) |
| RATIO |
1 /3.4736 |
1 / 3.143 |
| STANDARD
P.C.D |
107.699 |
374.113 |
170.592 |
536.145 |
| WIDTH
OF TEETH |
110 |
105 |
135 |
130 |
| HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
| MATERIAL |
SNCM21 |
| HEAT
TREATMENT |
CARBURIZING |
| GRADE |
JIS 2 |
|
|
| |
|
|
 |
|
