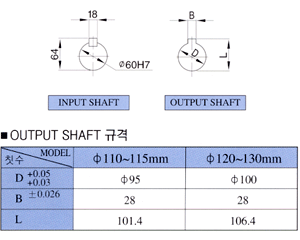

GEAR SPECIFICATION
|
|
DRIVEN MOTOR
|
132Kw * 1750 RPM
|
|
OUTPUT SHAFT SPEED
|
92 RPM
|
|
REDUCTION RATIO
|
1 / 11.967
|
|
LUBRICANT
|
ISO VG 220. 60 LITER
|
|
WEIGHT
|
1200 Kg
|
|
NAME
|
STEP
|
1 STEP GEAR
|
2 STEP GEAR
|
|
PART
|
PINION
|
GEAR
|
PINION
|
GEAR
|
|
MODULE
|
3.75
|
6.5
|
|
NO DF TEETH
|
22
|
89
|
24
|
71
|
|
PRESSURE ANGLE
|
20 ¢ª
|
20 ¢ª
|
|
HELIX ANGLE
|
(R) 15 ¢ª 30' (L)
|
(R) 10 ¢ª (L)
|
|
RATIO
|
1 / 4.045
|
1 / 2.958
|
|
STANDARD P.C.D
|
85.614
|
346.346
|
158.407
|
468.619
|
|
WIDTH OF TEETH
|
115
|
110
|
125
|
120
|
|
HARDNESS OF TEETH
|
HRc60¡¾2
|
HRc58¡¾2
|
HRc60¡¾2
|
HRc58¡¾2
|
|
MATERIAL
|
SNCM21
|
|
HEAT TREATMENT
|
CARBURIZING
|
|
GRADE
|
JIS 2
|
|
|
| |
|
|
 |
|
