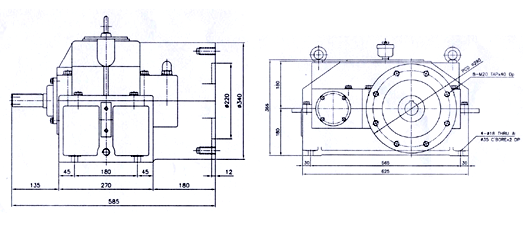

GEAR SPECIFICATION |
DRIVEN MOTOR |
45 Kw x 1750 RPM |
OUTPUT SHAFT SPEED |
110 RPM |
REDUCTION RATIO |
1/10.031 |
LUBRICANT |
ISO VG 220.25 LITER |
WEIGHT |
400 Kg |
NAME |
STEP |
1 STEP GEAR |
2 STEP GEAR |
PART |
PINION |
GEAR |
PINION |
GEAR |
MODULE |
3 |
4.5 |
NO DF TEETH |
19 |
60 |
17 |
54 |
RATIO |
1/3.157 |
1/3.176 |
RPESSURE ANGLE |
20 ¡Æ |
20 ¡Æ |
HELIX ANGLE |
(R) 15 ¡Æ (L) |
(R) 13 ¡Æ (L) |
STANDARD P.C.D |
59.011 |
186.350 |
78.512 |
249.392 |
WIDTH OF TEETH |
65 |
60 |
85 |
80 |
HARDNESS OF TEETH |
HRc60¡¾2 |
HRc58¡¾2 |
HRc60¡¾2 |
HRc58¡¾2 |
MATERIAL |
SNCM21 |
SNCM21 |
SNCM21 |
SNCM21 |
HEAT TREATMENT |
CARBURIZING |
CARBURIZING |
GRADE |
JIS 2 |
JIS 2 |
|
|
| |
|
|
 |
|
