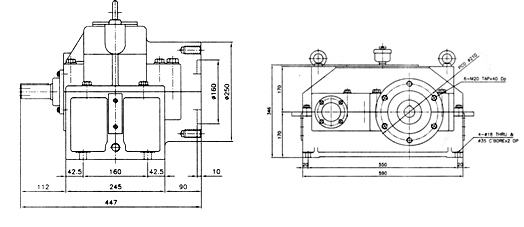

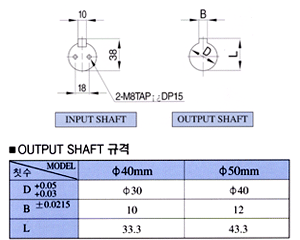

GEAR SPECIFICATION |
DRIVEN MOTOR |
22 Kw x 1750 RPM |
OUTPUT SHAFT SPEED |
105 RPM |
REDUCTION RATIO |
1/10.441 |
LUBRICANT |
ISO VG 220.20 LITER |
WEIGHT |
250 Kg |
NAME |
STEP |
1 STEP GEAR |
2 STEP GEAR |
PART |
PINION |
GEAR |
PINION |
GEAR |
MODULE |
2.5` |
3.5 |
NO DF TEETH |
21 |
72 |
22 |
67 |
RATIO |
1/3.428 |
1/3.045 |
RPESSURE ANGLE |
20 ¡Æ |
20 ¡Æ |
HELIX ANGLE |
(R) 15 ¡Æ (L) |
(R) 15 ¡Æ (L) |
STANDARD P.C.D |
54.352 |
186.350 |
70.716 |
242.772 |
WIDTH OF TEETH |
50 |
45 |
65 |
60 |
HARDNESS OF TEETH |
HRc60¡¾2 |
HRc58¡¾2 |
HRc60¡¾2 |
HRc58¡¾2 |
MATERIAL |
SCM415 |
SCM415 |
SCM415 |
SCM415 |
HEAT TREATMENT |
CARBURIZING |
CARBURIZING |
GRADE |
JIS 2 |
JIS 2 |
|
|
| |
|
|
 |
|
